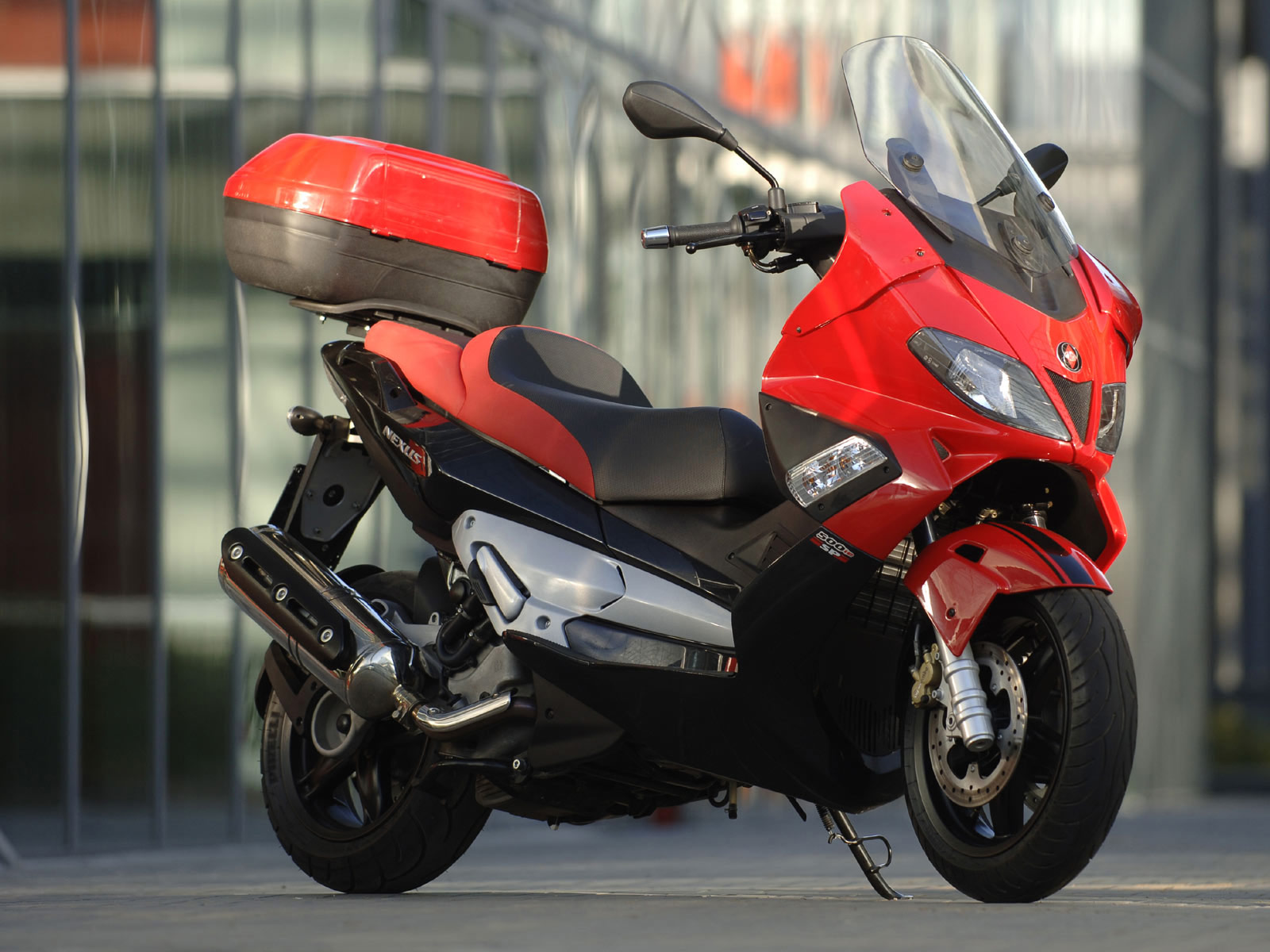

2006 GILERA Nexus 500
Click Thumbnail to download (size 1600 x 1200 pixels)

An entirely new breed of scooter. By crossing the sporty characteristics of the Gilera Brand with the performance provided by the MASTER 500cc electronic injection engine, the Gilera Nexus is the first Sport Gran-Turismo scooter.

Specifications

Model: Gilera Nexus 500

Year: 2006

Category: Scooter

Rating: 70.6 out of 100.

Engine and transmission

Displacement: 460.00 ccm (28.07 cubic inches)

Engine type: Single cylinder

Stroke: 4

Power: 40.12 HP (29.3 kW))

Torque: 43.00 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 5500 RPM

Compression: 10.5:1

Bore x stroke: 92.0 x 69.0 mm (3.6 x 2.7 inches)

Fuel system: Carburettor

Fuel control: SOHC

Ignition: Electronic inductive discharge, variable spark advance controlled by electronic injection

Starter: Electric

Lubrication system: Wet sump

Cooling system: Liquid

Gearbox: Automatic

Transmission type final drive: Belt

Clutch: Automatic dry centrifuge type

Physical measures

Dry weight: 101.0 kg (222.7 pounds)

Weight incl. oil, gas, etc: 216.0 kg (476.2 pounds)

Seat height: 780 mm (30.7 inches) If adjustable, lowest setting.

Overall length: 2,090 mm (82.3 inches)

Wheelbase: 1,515 mm (59.6 inches)

Chassis and dimensions

Front suspension: Kayaba telehydraulic fork

Front suspension travel: 41 mm (1.6 inches)

Rear suspension: Progressive power drive, Kayaba gas shock absorber with spring preload

Front tyre dimensions: 120/70-15

Rear tyre dimensions: 160/60-14

Front brakes: Double disc

Front brakes diameter: 260 mm (10.2 inches)

Rear brakes: Single disc

Rear brakes diameter: 240 mm (9.4 inches)

Exhaust system: Two-way catalytic converter

Speed and acceleration

Power/weight ratio: 0.3972 HP/kg

Other specifications

Fuel capacity: 15.00 litres (3.96 gallons)
