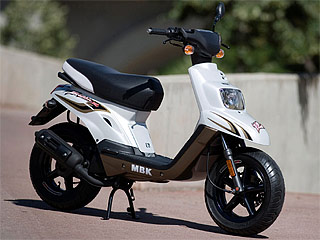

2007 MBK Booster 12inch scooter pictures

2007 MBK Booster 12inch

MBK Scooter pictures

2007 MBK Booster 12inch
Click Thumbnail to download (size 1600 x 1200 pixels)

Specifications

Model: MBK Booster 12inch

Year: 2007

Category: Scooter

Rating: 65.9 out of 100.

Engine and transmission

Displacement: 49.00 ccm (2.99 cubic inches)

Engine type: Single cylinder

Stroke: 2

Power: 3.21 HP (2.3 kW)) @ 6500 RPM

Torque: 3.60 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM

Bore x stroke: 40.0 x 39.2 mm (1.6 x 1.5 inches)

Fuel system: Carburettor. GURTNER PY-12

Ignition: Electronic (C.D.I.)

Starter: Electric & kick

Lubrication system: Separate lubrication

Cooling system: Air

Gearbox: Automatic

Transmission type final drive: Belt

Physical measures

Dry weight: 75.0 kg (165.3 pounds)

Seat height: 768 mm (30.2 inches) If adjustable, lowest setting.

Overall height: 1,049 mm (41.3 inches)

Overall length: 1,685 mm (66.3 inches)

Overall width: 675 mm (26.6 inches)

Ground clearance: 124 mm (4.9 inches)

Wheelbase: 1,172 mm (46.1 inches)

Chassis and dimensions

Front suspension: Hydraulic and telescopic fork

Front suspension travel: 70 mm (2.8 inches)

Rear suspension: Hydraulic unit swing

Rear suspension travel: 70 mm (2.8 inches)

Front tyre dimensions: 120/70-12

Rear tyre dimensions: 130/70-12

Front brakes: Single disc. Disc, Ø 180

Rear brakes: Expanding brake (drum brake). Drum, Ø 110

Speed and acceleration

Power/weight ratio: 0.0428 HP/kg

Other specifications

Fuel capacity: 5.30 litres (1.40 gallons)

Color options: Jet Black, Light/Tech Gold

2007 MBK Rooster Rocket scooter pictures

2007 MBK Rooster Rocket

MBK Scooter pictures

2007 MBK Rooster Rocket
Click Thumbnail to download (size 1600 x 1200 pixels)

2007 MBK Booster X scooter pictures

2007 MBK Booster X

MBK Scooter pictures

2007 MBK Booster X
Click Thumbnail to download (size 1600 x 1200 pixels)

Radical thinking is about shaking things up. And for that, you can’t get better than the new Booster X. First, there’s its design: a funky, modern remix of cutting-edge minimalism and old-school cool. And second, there’s its engineering, which, thanks to a liquid-cooled, four-stroke, 50cc engine, makes its presence felt – and not heard. Unlike some, Booster X doesn’t shout its qualities out loud: they’re obvious, even before you turn the key. Technically-speaking, it’s packed with innovation: advanced 3-valve technology and electronic fuel injection ensure clean-burn performance that meets EU3 emission regulations, and sets you apart in the 50cc class. In the real world, this means smooth, quiet running, low exhaust emissions and excellent fuel economy. So, you can really feel good about zipping around town. As for the rest, it’s all in the details: forget, trend-chasing gimmicks, Booster X simply does its own thing. Check out the classic-style headlight and retro-look dash. After all, style isn’t subjective – you either have it, or you don’t. So, while the fresh looks will get you noticed, its eco-friendliness and efficiency will be easy on your wallet – and your conscience. Now, that’s what we call revolutionary. Everyday usability¿ Like all MBK products, it’s built in by design. With Booster X, you get powerful brakes, a handy 33 Litres of storage concealed beneath an easy-access, side-opening seat, and a relaxed, secure ride thanks to its groovy, wide handlebars, chunky, oversize tyres and motorcycle-style front forks. And as always, you can choose from a great options list that lets you make your MBK scooter even more unique. Booster X: there’s nothing else like it.

Specifications

Model: MBK Booster X
Year: 2007
Category: Scooter

Engine and transmission
Displacement: 49.00 ccm (2.99 cubic inches)
Engine type: Single cylinder
Stroke: 4
Power: 3.71 HP (2.7 kW)) @ 7500 RPM
Torque: 3.66 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 7000 RPM
Compression: 12.0:1
Bore x stroke: 38.0 x 43.5 mm (1.5 x 1.7 inches)
Fuel system: Carburettor. Electronic Fuel Injection
Fuel control: SOHC
Ignition: TCI
Starter: Electric & kick
Lubrication system: Wet sump
Cooling system: Liquid
Gearbox: Automatic
Transmission type final drive: Belt
Physical measures
Dry weight: 87.0 kg (191.8 pounds)
Seat height: 750 mm (29.5 inches) If adjustable, lowest setting.
Overall height: 1,040 mm (40.9 inches)
Overall length: 1,915 mm (75.4 inches)
Overall width: 695 mm (27.4 inches)
Ground clearance: 115 mm (4.5 inches)
Wheelbase: 1,280 mm (50.4 inches)

Chassis and dimensions
Front suspension: Hydraulic and telescopic fork
Front suspension travel: 65 mm (2.6 inches)
Rear suspension: Hydraulic unit swing
Rear suspension travel: 56 mm (2.2 inches)
Front tyre dimensions: 120/90-10
Rear tyre dimensions: 120/90-10
Front brakes: Expanding brake (drum brake). Drum, Ø 110 mm
Rear brakes: Expanding brake (drum brake). Drum, Ø 110

Speed and acceleration
Power/weight ratio: 0.0426 HP/kg

Other specifications
Fuel capacity: 4.50 litres (1.19 gallons)
Color options: Jet Black,Innova Silver

MBK Booster NG (2005) scooter pictures

MBK Booster NG (2005)

MBK Scooter pictures

MBK Booster NG (2005)
Click Thumbnail to download (size 1600 x 1200 pixels)

Specifications

Model: MBK Booster NG
Year: 2005
Category: Scooter
Rating: 55.7 out of 100.

Engine and transmission
Displacement: 49.00 ccm (2.99 cubic inches)
Engine type: In-line six
Stroke: 2
Power: 3.62 HP (2.6 kW)) @ 6800 RPM
Torque: 4.00 Nm (0.4 kgf-m or 3.0 ft.lbs) @ 5000 RPM
Compression: 11.2:1
Bore x stroke: 40.0 x 39.2 mm (1.6 x 1.5 inches)
Ignition: Electronic (C.D.I.)
Starter: Electric & kick
Lubrication system: Separate lubrication
Cooling system: Air
Clutch: Automatic centrifugal

Physical measures
Dry weight: 77.0 kg (169.8 pounds)
Seat height: 803 mm (31.6 inches) If adjustable, lowest setting.
Ground clearance: 153 mm (6.0 inches)
Wheelbase: 1,206 mm (47.5 inches)

Chassis and dimensions
Front suspension: Hydraulic and telescopic fork
Rear suspension: Hydraulic unit swing
Front tyre dimensions: 120/90-10
Rear tyre dimensions: 130/90-10
Front brakes: Single disc
Front brakes diameter: 190 mm (7.5 inches)
Rear brakes: Expanding brake (drum brake)
Rear brakes diameter: 110 mm (4.3 inches)

Speed and acceleration
Power/weight ratio: 0.0470 HP/kg

Other specifications
Fuel capacity: 5.30 litres (1.40 gallons)
