2011 Benelli Macis 125 Scooter Insurance Information

2011 Benelli Macis 125

BENELLI Scooter pictures | Insurance informations

2011 Benelli Macis 125
Click Thumbnail to download (size 1600 x 1200 pixels)

2011 Benelli Macis 125

Macis has been conceived to meet the need of completing our model range with a product that, while satisfying the market demands, is at the same time unique, sporty and characterised by a strong Benelli “familiy feeling”.

This unique style can be clearly appreciated in the alluminium alloy handlebar as well as in the rear bag brackets and the foot rest.

The Benelli style is additionally highlightened by the exclusive symmetrical design of the muffler and transmission, which, together with the design of the side fairings, makes the vehicle even more unmistakable.

All these characteristics will not at all affect the price of the vehicle which is absolutely competitive.

The front light, developed from the models of the “DUE” and the“ Tornado”, brings out the aggressiveness of the front fairing, together with the original and functional dashboard.

The flat footrest and the 16” wheels provide a very smooth riding in the urban traffic.

The front disc DIA 240mm, together with the rear disc of the same diameter, allow a reduced braking space while ensuring a greater safety for the user.

MACIS is equipped with double stand (central and side stands) which is more practical for the user.

The vehicle is available with rear bag in the same colour of the scooter included in the final price.

Benelli makes available also the front windshield as an accessory.

The engine of MACIS is proposed in two displacements (125 and 150) and both versions are equipped with liquid cooling system.

MACIS is available in the colours: white. Other colours to be defined;

Availability: spring 2011


Specifications

ENGINE

TYPE
Single cylinder, 4 stroke, liquid cooled, 2 valves, single overhead
camshaft

DISPLACEMENT
124,6 c.c.

BORE x STROKE52,4 x 57,8 mm

COMPRESSION RATIO
10,4:1

RATED OUTPUT
8,9 kW (12,1 CV) @ 8500 rpm

MAX. TORQUE
10,7 Nm (1,1 kgm) @ 6500 rpm

FUEL SUPPLY Carburetor Æ26 mm – PD26J

LUBRICATION Wet crankcase

120c.c. (Scatola OIL CAPACITY riduttore/Gearbox)

EXHAUST SYSTEM With catalytic converter

CERTIFICATION
Euro 3

CLUTCH Automatic centrifugal dry clutch

PRIMARY DRIVE V belt

FINAL DRIVE Gears in oil bath

ELECTRIC EQUIPMENT

IGNITION CDI

SPARK PLUG
NGK CR8E

STARTING ELECTRIC

CHASSIS

FRAME Steel trestle with a double cradle in steel tube

FRONT SUSPENSION Hydraulic telescopic fork ø33 mm

FRONT SUSPENSION STROKE
ANTERIORE 86 mm

REAR SUSPENSION Floating engine with double hydraulic rear dumper

REAR SUSPENSION STROKE
POSTERIORE 58mm

FRONT BRAKE Steel disk ø240 mm with floating double piston caliper

REAR BRAKE Steel disk ø240 mm with floating double piston caliper

FRONT RIM TYPE Aluminium alloy

FRONT RIM DIMENSIONS
2,50”x16”

REAR RIM TYPE Aluminium alloy

REAR RIM DIMENSION
2,75”x16”

FRONT TYRE
100/80-16

REAR TYRE
120/80-16 (110/80-16)

DIMENSIONS

LENGHT
2095 mm

WIDHT EXCLUDING MIRRORS
720 mm

HEIGHT EXCLUDING MIRRORS
1115 mm

SEAT HEIGHT
800 mm

WHEELBASE
1380 mm

GROUND CLEARANCE** N.D.
TRAIL N.D.


STEERING PIPE ANGLE N.D.

UNLADEN WEIGHT*
130 kg

ROAD READY WEIGHT**137 kg

PERMITTED TOTAL WEIGHT
295 kg

USABLE TANK VOLUME
7,4 lt

RESERVE
N.D.

Motorcycles Insurance Information motorcycle.progressive.com Who will provide physical damage insurance coverage for custom built motorcycles? Nationwide - Custom parts and equipment coverage (up to $30,000), Custom and limited edition bikes and trikes coverage (up to $50,000), Kit and vintage bike coverage (up to $30,000) (nationwide.com/motorcycle-insurance-coverage.jsp) Safeco insures a full spectrum of motorcycles from street cycles, Harley Davidsons, cruisers and touring bikes to dirt bikes and ATVs. If you select custom parts coverage, you will receive up to $3,000 in coverage without any additional cost to you. Coverage is available for up to $10,000 in custom parts and equipment. (safeco.com/personal/motorcycle/coverage-options) Progressive - Motorcycle coverage - when you purchase Comprehensive or Collision coverage, at least $1,000 of Custom Parts and Equipment (CPE)/Accessory coverage - Custom paint, custom plating or custom exhaust is included in most states. Additional CPE coverage can be purchased to cover equipment, up to $30,000 in value. (motorcycle.progressive.com/motorcycle-insurance-coverages-custompartsequipment.aspx) (motorcycle.progressive.com/custom-motorcycle-insurance.aspx)

2011 Benelli Caffenero 150 Scooter pictures

2011 Benelli Caffenero 150

BENELLI Scooter pictures | Insurance informations

2011 Benelli Caffenero 150
Click Thumbnail to download (size 1600 x 1200 pixels)

2011 Benelli Caffenero 150

Caffénero, a scooter with classical lines, is the ideal for the urban mobility.

MOTOBI CaffèNero is synonimous of absolute technical and aesthetical value at a price which is among the lowest in its category.

The double front light and the integrated indicators give an extremely compact and aggressive character to Caffénero.

The flat footrest and the 16” wheels provide a great riding smoothness in the urban traffic.

The front disc DIA 240mm, in addition to the rear disc of the same diameter, allow a reduced braking space and greater safety for the user.

The vehicle is available with rear bag in the same colour of the scooter included in the final price.

The engine of CaffèNero is available in two displacements (125 and 150) and both versions are equipped with liquid cooling system.

CaffèNero is presented in the colours: grey. Other colurs to be defined;

Availability: February 2011

Specifications

MOTORE / ENGINE

TYPE
Single cylinder, 4 stroke, liquid cooled, 2 valves, single overhead
camshaft

CILINDRATA
151 c.c.
DISPLACEMENT

ALESAGGIO x CORSA
57,6 x 57,8 mm
BORE x STROKE

RAPPORTO DI COMPRESSIONE
11:1
COMPRESSION RATIO

POTENZA MASSIMA
9,6 kW (13 CV) @ 7500 rpm
RATED OUTPUT

COPPIA MASSIMA
13,3 Nm (1,35 kgm) @ 6000 rpm
MAX. TORQUE

FUEL SUPPLY Carburetor Æ26 mm - PD26JE


LUBRICATION Wet crankcase

120c.c. (Scatola OIL CAPACITY riduttore/Gearbox)


EXHAUST SYSTEM With catalytic converter

OMOLOGAZIONE
Euro 3
CERTIFICATION


CLUTCH Automatic centrifugal dry clutch


PRIMARY DRIVE V belt


FINAL DRIVE Gears in oil bath

ELECTRIC EQUIPMENT
IGNITION

CDI

SPARK PLUG
NGK CR8E


STARTING ELECTRIC

CICLISTICA / CHASSIS


FRAME Split single cradle frame in high tensile strength steel tube


FRONT SUSPENSION Hydraulic telescopic fork ø33 mm

FRONT SUSPENSION STROKE
70 mm


REAR SUSPENSION Floating engine with double hydraulic rear dumper

REAR SUSPENSION STROKE50mm


FRONT BRAKE Steel disk ø240 mm with floating double piston calliper


REAR BRAKE Steel disk ø240 mm with floating double piston calliper

FRONT RIM TYPE Aluminium alloy

FRONT RIM DIMENSIONS
2,50"x16"


REAR RIM TYPE Aluminium alloy

REAR RIM DIMENSION
2,75"x16"

PNEUMATICO ANTERIORE
100/80 - 16 50S
FRONT TYRE
PNEUMATICO POSTERIORE 110/80 - 16 60S (120/80 - 16 60P)
REAR TYRE

DIMENSIONS

LENGHT
2070 mm

WIDHT EXCLUDING MIRRORS
715 mm

HEIGHT EXCLUDING MIRRORS
1260 mm

SEAT HEIGHT
800 mm

WHEELBASE
1360 mm

ALTEZZA DA TERRA** N.D.
GROUND CLEARANCE** N.D.

AVANCORSA N.D.
TRAIL N.D.
INCLINAZIONE CANNOTTO

STERZO
N.D.
STEERING PIPE ANGLE N.D.

UNLADEN WEIGHT*
125 kg

ROAD READY WEIGHT**
130 kg

PERMITTED TOTAL WEIGHT
285 kg

USABLE TANK VOLUME
7,4 l

RISERVA
Nd
RESERVE

Motorcycles Insurance Information motorcycle.progressive.com Who will provide physical damage insurance coverage for custom built motorcycles? Nationwide - Custom parts and equipment coverage (up to $30,000), Custom and limited edition bikes and trikes coverage (up to $50,000), Kit and vintage bike coverage (up to $30,000) (nationwide.com/motorcycle-insurance-coverage.jsp) Safeco insures a full spectrum of motorcycles from street cycles, Harley Davidsons, cruisers and touring bikes to dirt bikes and ATVs. If you select custom parts coverage, you will receive up to $3,000 in coverage without any additional cost to you. Coverage is available for up to $10,000 in custom parts and equipment. (safeco.com/personal/motorcycle/coverage-options) Progressive - Motorcycle coverage - when you purchase Comprehensive or Collision coverage, at least $1,000 of Custom Parts and Equipment (CPE)/Accessory coverage - Custom paint, custom plating or custom exhaust is included in most states. Additional CPE coverage can be purchased to cover equipment, up to $30,000 in value. (motorcycle.progressive.com/motorcycle-insurance-coverages-custompartsequipment.aspx) (motorcycle.progressive.com/custom-motorcycle-insurance.aspx)

2011 Benelli Caffenero 125 Insurance Information

2011 Benelli Caffenero 125

BENELLI Scooter pictures | Insurance informations

2011 Benelli Caffenero 125
Click Thumbnail to download (size 1600 x 1200 pixels)

2011 Benelli Caffenero 125

Caffénero, a scooter with classical lines, is the ideal for the urban mobility.

MOTOBI CaffèNero is synonimous of absolute technical and aesthetical value at a price which is among the lowest in its category.

The double front light and the integrated indicators give an extremely compact and aggressive character to Caffénero.

The flat footrest and the 16” wheels provide a great riding smoothness in the urban traffic.

The front disc DIA 240mm, in addition to the rear disc of the same diameter, allow a reduced braking space and greater safety for the user.

The vehicle is available with rear bag in the same colour of the scooter included in the final price.

The engine of CaffèNero is available in two displacements (125 and 150) and both versions are equipped with liquid cooling system.

CaffèNero is presented in the colours: grey. Other colurs to be defined;

Availability: February 2011

Specifications

ENGINE

TYPE
Single cylinder, 4 stroke, liquid cooled, 2 valves, single overhead
camshaft

DISPLACEMENT
124,6 c.c.

BORE x STROKE
52,4 x 57,8 mm

COMPRESSION RATIO
10,4:1

RATED OUTPUT
8,9 kW (12,1 CV) @ 8250 rpm

MAX. TORQUE
12,5 Nm (1,27 kgm) @ 6000 rpm

FUEL SUPPLY Carburetor Æ26 mm - PD26JE

LUBRICATION Wet crankcase

CAPACITA' TOTALE 1000c.c. (Motore/Engine)
120c.c. (Scatola OIL CAPACITY riduttore/Gearbox)
IMPIANTO DI SCARICO Con catalizzatore

EXHAUST SYSTEM With catalytic converter
CERTIFICATION
Euro 3

CLUTCH Automatic centrifugal dry clutch
PRIMARY DRIVE V belt
FINAL DRIVE Gears in oil bath

ELECTRIC EQUIPMENT

IGNITION
CDI

SPARK PLUG
NGK CR8E

STARTING ELECTRIC

CHASSIS

FRAME Split single cradle frame in high tensile strength steel tube

FRONT SUSPENSION Hydraulic telescopic fork ø33 mm

FRONT SUSPENSION STROKE
70 mm

REAR SUSPENSION Floating engine with double hydraulic rear dumper

REAR SUSPENSION STROKE
50mm

FRONT BRAKE Steel disk ø240 mm with floating double piston caliper

REAR BRAKE Steel disk ø240 mm with floating double piston caliper

FRONT RIM TYPE Aluminium alloy

FRONT RIM DIMENSIONS
2,50"x16"

REAR RIM TYPE Aluminium alloy

REAR RIM DIMENSION
2,75"x16"

FRONT TYRE
100/80 - 16 50S

REAR TYRE
110/80 - 16 60S (120/80 - 16 60P)

DIMENSIONS
LENGHT
2070 mm

WIDHT EXCLUDING MIRRORS
715 mm

HEIGHT EXCLUDING MIRRORS
1260 mm

SEAT HEIGHT
800 mm

WHEELBASE
1360 mm

GROUND CLEARANCE** N.D.

TRAIL N.D.

STEERING PIPE ANGLE N.D.

UNLADEN WEIGHT*
125 kg

ROAD READY WEIGHT**130 kg

PERMITTED TOTAL WEIGHT
285 kg

USABLE TANK VOLUME
7,4 l

RESERVE
Nd

Motorcycles Insurance Information motorcycle.progressive.com Who will provide physical damage insurance coverage for custom built motorcycles? Nationwide - Custom parts and equipment coverage (up to $30,000), Custom and limited edition bikes and trikes coverage (up to $50,000), Kit and vintage bike coverage (up to $30,000) (nationwide.com/motorcycle-insurance-coverage.jsp) Safeco insures a full spectrum of motorcycles from street cycles, Harley Davidsons, cruisers and touring bikes to dirt bikes and ATVs. If you select custom parts coverage, you will receive up to $3,000 in coverage without any additional cost to you. Coverage is available for up to $10,000 in custom parts and equipment. (safeco.com/personal/motorcycle/coverage-options) Progressive - Motorcycle coverage - when you purchase Comprehensive or Collision coverage, at least $1,000 of Custom Parts and Equipment (CPE)/Accessory coverage - Custom paint, custom plating or custom exhaust is included in most states. Additional CPE coverage can be purchased to cover equipment, up to $30,000 in value. (motorcycle.progressive.com/motorcycle-insurance-coverages-custompartsequipment.aspx) (motorcycle.progressive.com/custom-motorcycle-insurance.aspx)

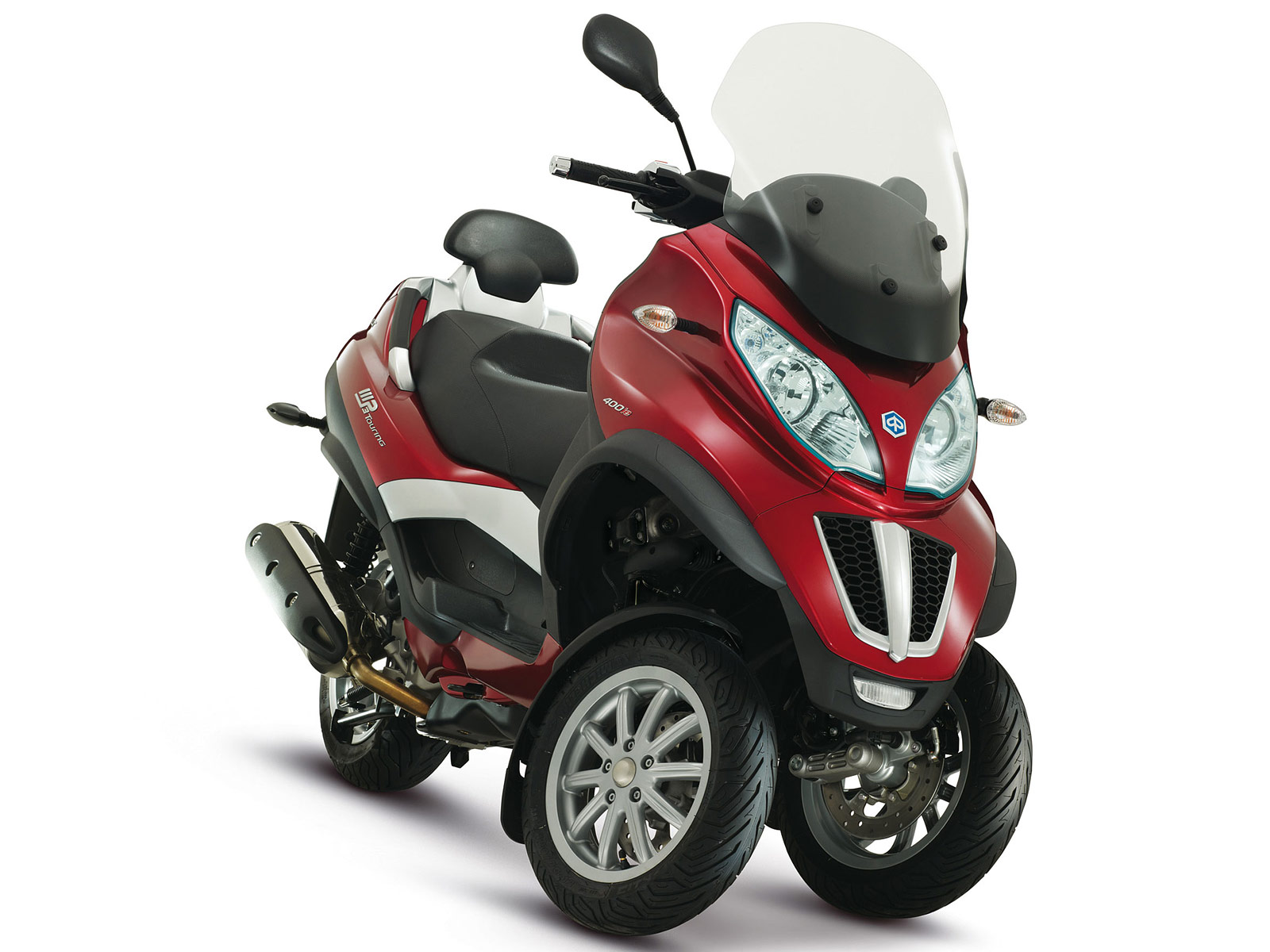

2012 Piaggio Mp3 Touring LT500IE scooter Insurance

2012 Piaggio Mp3 Touring LT 500 IE

PIAGGIO Scooter pictures | Insurance informations

2012 Piaggio Mp3 Touring LT 500 I.E.
Click Thumbnail to download (size 1600 x 1200 pixels)

2012 Piaggio Mp3 Touring LT 500 I.E. Review

Levels of safety and roadholding that would be impossible with a two-wheeler, matched with power and verve delivering pure fun and maximum riding enjoyment: these are the unbeatable characteristics that have made the Mp3 such a brilliant success.

The arrival of the Mp3 Touring brings completely revised looks and functionality to the most "classic" version of Piaggio's three-wheeler, while broadening its appeal with the addition of an all new 500cc variant offered in "Sport" and "Business" spec levels.

The new Mp3 Touring is also available as the LT version, which may be ridden by holders of a normal passenger car license.

The technically revolutionary three-wheel layout with two front wheels is the basis of the extraordinary success of the Mp3, a scooter unlike anything else in the world which, with its innovative design with two independently sprung and tilting wheels redefined the very concept of dynamic stability.

This winning formula - as proven by over 100,000 Mp3 scooters sold worldwide - has, over the years, spawned a multitude of different versions and spec levels to cater for the needs of every possible user. These include the Mp3 Hybrid, the world's first scooter with parallel hybrid drive and plug-in technology, and the Mp3 Yourban, which offers the exceptional stability and safety of the Mp3 in a vehicle conceived for urban use and simplicity.

The Mp3 Touring brings completely revised looks and functionality to the most "classic" version of Mp3 while retaining the exceptional comfort, space and load capacity that have made the scooter a firm favourite for thousands of users all over the world.

There is also a new and more extensive choice of engines: the new Mp3 Touring is available with the classic 125, 300 and 400 engine sizes, which are now joined by an all-new 500cc version offered in "Sport" and "Business" spec levels.

2012 Piaggio Mp3 Touring LT 500 I.E. Model Highlights

Design

The evolved styling of the new Mp3 Touring is immediately evident at first glance. While retaining a distinct resemblance with the rest of the Mp3 family, the new Touring boasts a new honeycomb front grille and a satin-finish centre moulding in the front shield.

The design of the windscreen is also completely new and offers even more protection than before. The new windscreen is adjustable, with three different settings: the gap between the top fairing and the windscreen splits the air flow into two parts, directed over and under the windscreen itself to eliminate turbulence at mid and high speeds.

The new design of the top fairing has also freed up space for a practical storage pocket with three compartments under the windscreen.

Other new features are the hand grips, with improved grip and ergonomics, the silver colour finish of the wheels, and the saddle, which is now upholstered with new materials and enhanced with relief stitching. The Touring retains the same class-beating features of the Mp3 in terms of comfort and functionality, such as the large, ergonomic rear grab handle with integrated backrest, and the luggage compartment, accessible from under the saddle and from the rear hatch, with a record-breaking 65 litres of load capacity and the ability to accommodate objects up to 1 metre in length!

Touring 500ie: Mp3 to the Nth power

Mp3 Touring 500ie has been created to cater for the user looking for a vehicle offering superlative performance without sacrificing the elegance, comfort and unparalleled standards of active safety typical of the Mp3.

Powered by a high-performance 500ie engine with twin-spark ignition, the Mp3 500 delivers class-beating performance and is offered in two different spec levels: "Sport" and "Business".

Mp3 Touring 500ie "Sport" offers all the new technological and functional features of the Touring range, but enhanced with a number of race-inspired details, such as aluminium footpegs, silver saddle stitching and sleeker, more aerodynamic rear view mirrors which, together with the dedicated Matt Grey colour scheme and the aggressive black finish of the wheels, the grab handle, the exhaust heat shield and the headlight tub, emphasise the sporty character of this variant.

For those looking for performance but with more restrained, elegant looks, there is the Mp3 Touring 500 in the exclusive "Business" spec level, offered in the dedicated Perla White, Perseo Bronze and Orione Grey colour schemes - which come with a brown saddle and matching trim for the passenger grab handle, and with a chrome finish for the exhaust heat shield - or in sophisticated Cosmo Black with a black saddle. This variant also boasts all the new features of the Touring family.

Engines

The Mp3 Touring 500 boasts a 492 cc liquid cooled 4-stroke powerplant with twin-spark ignition, 4 valves and electronic fuel injection, producing 40 hp at 7,250 rpm and a maximum torque of 44 Nm at 5,500 rpm. The introduction of a twin spark plug system optimises combustion in the cylinder, reducing both noise and exhaust emissions. The result is a flexible, high performance engine with plenty of low and mid range torque, giving the Mp3 Touring 500ie a top speed approaching 145 Km/h, with total respect for the environment ensured by the advanced "closed loop" injection system with an oxygen sensor and a three-way catalytic converter.

Technology

Riding the Piaggio MP3 is an experience that revolutionises the very concept of mobility, with the dual wheeled front suspension system ensuring levels of stability in curves far superior to any normal scooter. At speed, and even when riding behind other vehicles, the Piaggio MP3 Touring stays glued to the road and always delivers maximum performance in total safety. The benefits of the three wheel revolution can be felt particularly on wet roads and in other riding conditions that are critical for conventional two-wheelers.
On city and urban streets, Piaggio MP3 is unrivalled in terms of safety: cobblestones, poor surfaces, tramlines and manhole covers are dispatched with previously unattainable ease and stability.

Measuring no more than a maxi scooter and boasting incredible agility, the Piaggio MP3 Touring is completely at home in the city centre. It is also remarkably easy to park, as the electrohydraulic front suspension hold system keeps the vehicle upright without using the stand.

The revolutionary Piaggio MP3 boasts incredibly short braking distances unmatched by anything else in the scooter world: the powerful triple disc brake system and the incredible grip of the front end ensure stopping distances 20% shorter than the best performing scooter in critical grip conditions.

When the road leaves the town behind, the Piaggio MP3 really shows what it is made of. Road holding, cornering safety and lean angle unattainable for conventional scooters guarantee immense riding satisfaction on fast country roads.

LT: The MP3 for everyone

All engine variants of the Piaggio Mp3 Touring above 125 cc are also available as LT versions. These versions comply with requisites for a specific type approval class, making the Mp3 the world's only scooter which may be ridden by holders of a standard passenger car license.

The Mp3 Touring LT differs from other variants in a number of modifications necessary for specific type approval, such as a front track widened to 465 mm, motorcycle-type turn indicators, a daylight running light integrated in the lower part of the leg shield and integral braking, allowing both the front and rear brakes to be applied simultaneously on the Mp3 Touring LT from an additional brake pedal on the footrest.

Colours

The "Sport" spec level of the Mp3 Touring 500 is available in aggressive Matt Grey, while the "Business" variant is offered in the elegant Perseo Bronze, Perla White and Orione Grey colours with a brown saddle, or in Cosmo Black with a black saddle.

Specifications
MSRP Price: TBA

Engine Master single cylinder with dual ignition, 4 stroke, 4 valves, electronic injection
Engine capacity 493 cu cm
Bore x stroke 94 mm / 71 mm
Power 40.1 hp at 7,250 rpm
Torque 46.5 Nm at 5,250 rpm
Valve timing system Single overhead camshaft (SOHC) - 4 valves
Fuel system: Electronic injection
Cooling Liquid
Lubrication Wet sump
Starter Electric
Transmission CVT with torque server
Clutch Automatic, centrifugal dry clutch
Frame Double cradle in high strength tubular steel
Front Suspension Articulated quadrilateral consisting of four aluminium arms sustaining two steering tubes, and pull rod suspension geometry with offset wheel axle - Wheel travel: 85 mm
Rear suspension Double dual action hydraulic shock absorber with adjustable spring preload - Stroke: 110 mm
Front brake Two 240 mm discs
Rear brake 240 mm Ø disc
Front wheel rim Aluminium alloy 12" x 3.00
Rear wheel rim Aluminium alloy 14" x 4.50
Front tyre Tubeless 120/70-12"
Rear tyre Tubeless 140/70-14''
Length/Width 2,180 mm / 760 mm
Wheelbase 1,550 mm
Seat height 785 mm
Fuel tank capacity 12 litres (including 1.8 litre reserve)
Emissions compliance EURO 3 (EURO 2)

Motorcycles Insurance Information motorcycle.progressive.com Who will provide physical damage insurance coverage for custom built motorcycles? Nationwide - Custom parts and equipment coverage (up to $30,000), Custom and limited edition bikes and trikes coverage (up to $50,000), Kit and vintage bike coverage (up to $30,000) (nationwide.com/motorcycle-insurance-coverage.jsp) Safeco insures a full spectrum of motorcycles from street cycles, Harley Davidsons, cruisers and touring bikes to dirt bikes and ATVs. If you select custom parts coverage, you will receive up to $3,000 in coverage without any additional cost to you. Coverage is available for up to $10,000 in custom parts and equipment. (safeco.com/personal/motorcycle/coverage-options) Progressive - Motorcycle coverage - when you purchase Comprehensive or Collision coverage, at least $1,000 of Custom Parts and Equipment (CPE)/Accessory coverage - Custom paint, custom plating or custom exhaust is included in most states. Additional CPE coverage can be purchased to cover equipment, up to $30,000 in value. (motorcycle.progressive.com/motorcycle-insurance-coverages-custompartsequipment.aspx) (motorcycle.progressive.com/custom-motorcycle-insurance.aspx)

2012 Piaggio Mp3 Touring LT400IE Scooter pictures and specs

2012 Piaggio Mp3 Touring LT 400 IE

PIAGGIO Scooter pictures

2012 Piaggio Mp3 Touring LT 400 I.E.
Click Thumbnail to download (size 1600 x 1200 pixels)

2012 Piaggio Mp3 Touring LT 400 I.E. Review

Levels of safety and roadholding that would be impossible with a two-wheeler, matched with power and verve delivering pure fun and maximum riding enjoyment: these are the unbeatable characteristics that have made the Mp3 such a brilliant success.

The arrival of the Mp3 Touring brings completely revised looks and functionality to the most "classic" version of Piaggio's three-wheeler, while broadening its appeal with the addition of an all new 500cc variant offered in "Sport" and "Business" spec levels.

The new Mp3 Touring is also available as the LT version, which may be ridden by holders of a normal passenger car license.

The technically revolutionary three-wheel layout with two front wheels is the basis of the extraordinary success of the Mp3, a scooter unlike anything else in the world which, with its innovative design with two independently sprung and tilting wheels redefined the very concept of dynamic stability.

This winning formula - as proven by over 100,000 Mp3 scooters sold worldwide - has, over the years, spawned a multitude of different versions and spec levels to cater for the needs of every possible user. These include the Mp3 Hybrid, the world's first scooter with parallel hybrid drive and plug-in technology, and the Mp3 Yourban, which offers the exceptional stability and safety of the Mp3 in a vehicle conceived for urban use and simplicity.

The Mp3 Touring brings completely revised looks and functionality to the most "classic" version of Mp3 while retaining the exceptional comfort, space and load capacity that have made the scooter a firm favourite for thousands of users all over the world.

There is also a new and more extensive choice of engines: the new Mp3 Touring is available with the classic 125, 300 and 400 engine sizes, which are now joined by an all-new 500cc version offered in "Sport" and "Business" spec levels.

2012 Piaggio Mp3 Touring LT 400 I.E. Model Highlights

Design
The evolved styling of the new Mp3 Touring is immediately evident at first glance. While retaining a distinct resemblance with the rest of the Mp3 family, the new Touring boasts a new honeycomb front grille and a satin-finish centre moulding in the front shield.

The design of the windscreen is also completely new and offers even more protection than before. The new windscreen is adjustable, with three different settings: the gap between the top fairing and the windscreen splits the air flow into two parts, directed over and under the windscreen itself to eliminate turbulence at mid and high speeds.

The new design of the top fairing has also freed up space for a practical storage pocket with three compartments under the windscreen.

Other new features are the hand grips, with improved grip and ergonomics, the silver colour finish of the wheels, and the saddle, which is now upholstered with new materials and enhanced with relief stitching. The Touring retains the same class-beating features of the Mp3 in terms of comfort and functionality, such as the large, ergonomic rear grab handle with integrated backrest, and the luggage compartment, accessible from under the saddle and from the rear hatch, with a record-breaking 65 litres of load capacity and the ability to accommodate objects up to 1 metre in length!

Engines
Piaggio Mp3 Touring is offered with a comprehensive range (125, 300, 400 and 500 cc) of 4-stroke, liquid cooled engines with electronic injection.

The Piaggio Mp3 Touring 400ie is driven by the powerful and reliable, 4-stroke, 4-valve, liquid cooled and electronically fuel injected 400 cc engine, producing an impressive 34 hp at 7,500 rpm and a maximum torque of 37.6 Nm at 5,500 rpm.

Technology
Riding the Piaggio MP3 is an experience that revolutionises the very concept of mobility, with the dual wheeled front suspension system ensuring levels of stability in curves far superior to any normal scooter. At speed, and even when riding behind other vehicles, the Piaggio MP3 Touring stays glued to the road and always delivers maximum performance in total safety. The benefits of the three wheel revolution can be felt particularly on wet roads and in other riding conditions that are critical for conventional two-wheelers.
On city and urban streets, Piaggio MP3 is unrivalled in terms of safety: cobblestones, poor surfaces, tramlines and manhole covers are dispatched with previously unattainable ease and stability.

Measuring no more than a maxi scooter and boasting incredible agility, the Piaggio MP3 Touring is completely at home in the city centre. It is also remarkably easy to park, as the electrohydraulic front suspension hold system keeps the vehicle upright without using the stand.

The revolutionary Piaggio MP3 boasts incredibly short braking distances unmatched by anything else in the scooter world: the powerful triple disc brake system and the incredible grip of the front end ensure stopping distances 20% shorter than the best performing scooter in critical grip conditions.

When the road leaves the town behind, the Piaggio MP3 really shows what it is made of. Road holding, cornering safety and lean angle unattainable for conventional scooters guarantee immense riding satisfaction on fast country roads.

LT: The MP3 for everyone

All engine variants of the Piaggio Mp3 Touring above 125 cc are also available as LT versions. These versions comply with requisites for a specific type approval class, making the Mp3 the world's only scooter which may be ridden by holders of a standard passenger car license.

The Mp3 Touring LT differs from other variants in a number of modifications necessary for specific type approval, such as a front track widened to 465 mm, motorcycle-type turn indicators, a daylight running light integrated in the lower part of the leg shield and integral braking, allowing both the front and rear brakes to be applied simultaneously on the Mp3 Touring LT from an additional brake pedal on the footrest.

Colours
The 125, 300 and 400 versions of the new Piaggio Mp3 Touring are available in four metallic colours - Cosmo Black, Orione Grey, Midnight Blue and Antares Red.

Specifications
MSRP Price: TBA

Engine Master single cylinder with dual ignition, 4 stroke, 4 valves, electronic injection
Engine capacity 493 cu cm
Bore x stroke 94 mm / 71 mm
Power 40.1 hp at 7,250 rpm
Torque 46.5 Nm at 5,250 rpm
Valve timing system Single overhead camshaft (SOHC) - 4 valves
Fuel system: Electronic injection
Cooling Liquid
Lubrication Wet sump
Starter Electric
Transmission CVT with torque server
Clutch Automatic, centrifugal dry clutch
Frame Double cradle in high strength tubular steel
Front Suspension Articulated quadrilateral consisting of four aluminium arms sustaining two steering tubes, and pull rod suspension geometry with offset wheel axle - Wheel travel: 85 mm
Rear suspension Double dual action hydraulic shock absorber with adjustable spring preload - Stroke: 110 mm
Front brake Two 240 mm discs
Rear brake 240 mm Ø disc
Front wheel rim Aluminium alloy 12" x 3.00
Rear wheel rim Aluminium alloy 14" x 4.50
Front tyre Tubeless 120/70-12"
Rear tyre Tubeless 140/70-14''
Length/Width 2,180 mm / 760 mm
Wheelbase 1,550 mm
Seat height 785 mm
Fuel tank capacity 12 litres (including 1.8 litre reserve)
Emissions compliance EURO 3 (EURO 2)

Motorcycles Insurance motorcycle.progressive.com Who will provide physical damage insurance coverage for custom built motorcycles? Nationwide - Custom parts and equipment coverage (up to $30,000), Custom and limited edition bikes and trikes coverage (up to $50,000), Kit and vintage bike coverage (up to $30,000) (nationwide.com/motorcycle-insurance-coverage.jsp) Safeco insures a full spectrum of motorcycles from street cycles, Harley Davidsons, cruisers and touring bikes to dirt bikes and ATVs. If you select custom parts coverage, you will receive up to $3,000 in coverage without any additional cost to you. Coverage is available for up to $10,000 in custom parts and equipment. (safeco.com/personal/motorcycle/coverage-options) Progressive - Motorcycle coverage - when you purchase Comprehensive or Collision coverage, at least $1,000 of Custom Parts and Equipment (CPE)/Accessory coverage - Custom paint, custom plating or custom exhaust is included in most states. Additional CPE coverage can be purchased to cover equipment, up to $30,000 in value. (motorcycle.progressive.com/motorcycle-insurance-coverages-custompartsequipment.aspx) (motorcycle.progressive.com/custom-motorcycle-insurance.aspx)
